RTC Fife is always expanding its capabilities and welcomes the opportunity to look at new work. RTC Fife has multiple 3rd and 4th axis milling work centers, a high-speed linear manufacturing cell (featuring two 12,000 RPM spindles, 16 pallets, 400 tools and two setup stations) as well as a lathe department featuring multiple work centers and offers full in-house assembly capabilities.
Turning capabilities include:
MACHINE | MAX RPM | X | Y | Z | Extra Notes |
---|---|---|---|---|---|
Hyundai Kia SKT 21 | 4,000 | 8.268 | N/A | 16.929 | Tailstock 15.750 |
Mazak Quick-Turn 20 | 6,000 | 9.055 | N/A | 4.016 | |
Miyano BNA-42S | 5,000 | 5.512 | N/A | 8.268 | |
Miyano BNC 34S Lathe | 170/5,000 | 8.500 | N/A | 7.500 | |
Mori Seiki NL2500SY/700 | 4,000 | 10.236 | 1.969 | 31.299 | |
Mori Seiki NL2500Y/1250 | 4,000 | 10.236 | 3.937 | 52.953 | |
Mori SL-25B/1000 | 25-2,500 | 6.299 | N/A | 42.913 | Tailstock 39.016" |
Seiki HT20J Lathe | 35-4,000 | 8.268 | N/A | 15.748 | |
Seiki HT23J | 35-4,000 | 9.055 | N/A | 24.803 | |
Citizen Cincom L321 | 6,000 | 4.882 | 17.205 | 12.795 | Barfeeder Material 70.866" |

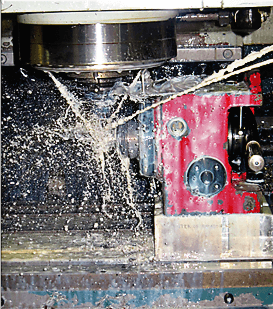

Milling Capabilities Include:
28 Machines, 6 Manufacturing Cells
Capacity: X<120 Inches, Y<40 Inches, Z<42.5 Inches
Including full 4th and 5th Axis
MACHINE | MAX RPM | X | Y | Z | 4TH | 5TH | Extra Notes |
---|---|---|---|---|---|---|---|
Chevalier QP3572 | 6,000 | 72.835 | 35.433 | 30.000 | YES | Tool Dia. 4.33" Length 13.8" Weight 6.8lbs | |
Fadal VMC 4020FX | 10,000 | 40.000 | 20.000 | 15.000 | YES | ||
Haas VR-11 | 15,000 | 120.000 | 40.000 | 30.000 | |||
Makino a61NX #1 | 13,000 | 14.370 | 28.740 | 31.496 | |||
Makino a61NX #2 | 13,000 | 14.370 | 28.740 | 31.496 | |||
Makino a81M #1 | 8,000 | 35.433 | 31.496 | 40.157 | YES | ||
Makino a81M #2 | 8,000 | 35.433 | 31.496 | 40.157 | YES | ||
Makino D500 | 14,000 | 21.654 | 39.370 | 19.685 | A=150° | C=360° | |
Makino PS 95 #1 | 14,000 | 36.220 | 20.079 | 18.110 | YES | ||
Makino PS 95 #2 | 14,000 | 36.220 | 20.079 | 18.110 | YES | ||
Makino PS 95 #3 | 14,000 | 36.220 | 20.079 | 18.110 | YES | ||
Matsuura MC-800VF | 8,000 | 31.496 | 17.992 | 20.000 | |||
Mazak MTV/515/40N | 25-6,000 | 41.181 | 20.118 | 20.118 | |||
Mori Seiki DV5100 | 10,000 | 41.339 | 20.866 | 20.866 | |||
Mori Seiki SV-503B/40 | 10,000 | 31.496 | 20.079 | 11.811 | YES | Tool Dia. 4.921" Length 999" Weight 3.629lbs | |
Okuma MX-60HB | 10,000 | 39.370 | 31.496 | 31.890 | YES | ||
Doosan #1 | 12,000 | 40.157 | 20.079 | 30.512 | |||
Doosan #2 | 12,000 | 47.244 | 21.260 | 20.079 | |||
FANUC RoboDrill #1 | 20,000 | 19.685 | 15.748 | 12.992 | YES | Max Tool Length 9.543" | |
FANUC RoboDrill #2 | 20,000 | 19.685 | 15.748 | 12.992 | YES | ||
FANUC RoboDrill #3 | 20,000 | 19.685 | 15.748 | 12.992 | YES | ||
YCM | 12,000 | 118.110 | 31.496 | 31.496 | YES | YES | X in two directions 43.307 |

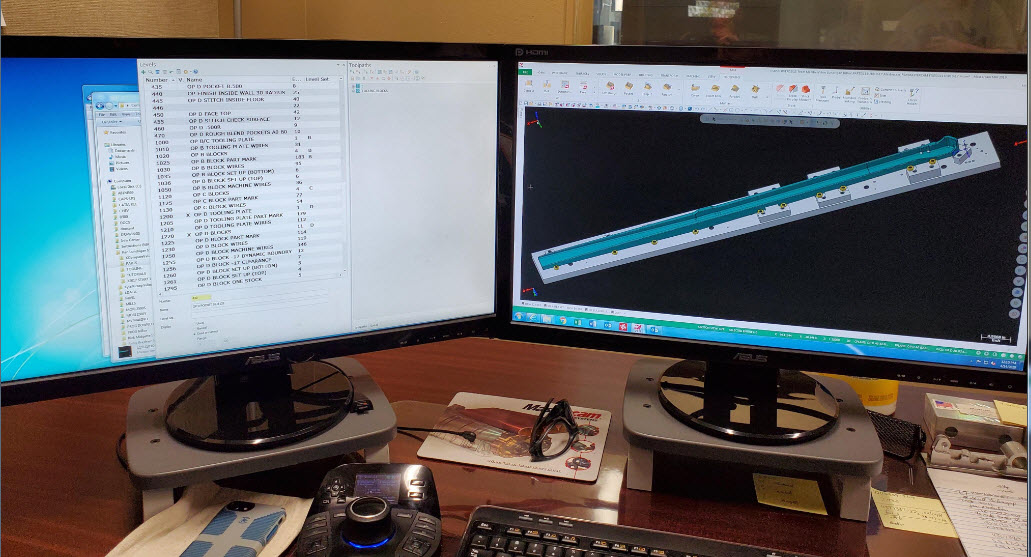

RTC Fife's solid modeling CAD-CAM capabilities allow us to meet customers design manufacturing needs.
The following is list of RTC Fife's CAD-CAM capabilities:

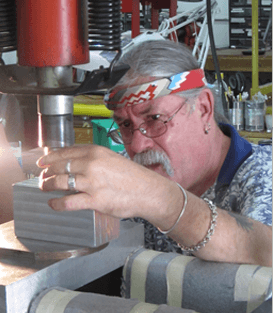

RTC Fife is engaged in the manufacture of complex sub-assemblies and systems using the simplest of assembly techniques like shrink and interference fitting to roller swaging and the more complex fixturing and assembly techniques necessary to hold radial tolerances within a degree. The RTC Fife assembly department is home to personnel experienced with a variety of assembly processes including:
